ProCalX comes packaged with ‘out of the box’ calibrator templates. This makes it easy to configure the assets to allow communication between ProCalX and the Fluke Documenting Calibrators (limited to versions 753, 754, and 729). The help links below lists out all the pre-defined calibrator templates. You also can create custom calibrator templates that will meet your specific organization’s needs.

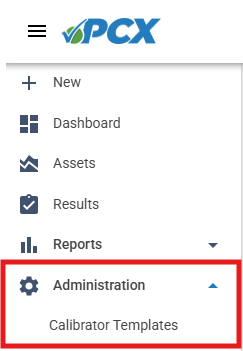

Calibrator Templates
| Column Name | Description | Note |
| Template Name | The name of the custom calibrator template. | Required Field. |
| Loop Power | Defines how the power is supplied to a loop-powered instrument during calibration. E.g. off, 24V, or 28V | Required Field. |
| Source Mode | Specifies how the calibrator sources a signal to simulate input conditions for the asset under test. | Required Field. |
| Measure Mode | Specifies how the calibrator reads the output signal from the instrument during calibration. This will determine what type of measurement is recorded as the result. | Required Field. |
| Custom Source Units | Specifies the custom source unit. | |
| Custom Measure Units | Specifies the custom measure unit. | |
| Custom Source - Enable Custom Units? | Enables a custom unit for the source. | T/F |
Custom Source - Enable Custom Units?
| Specifies the custom source low and high range. | |
| Custom Measure - Enable Custom Units? | Enables a custom unit for the measure. | T/F |
Custom Measure - Enable Custom Units?
| Specifies the custom measure low and high range. |
