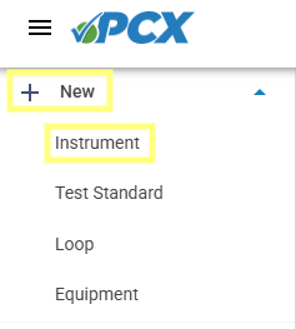

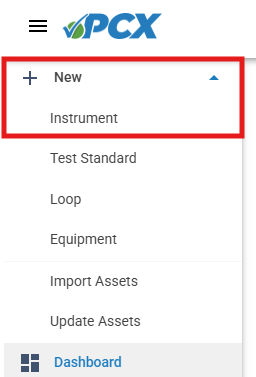

The ProCalX + New button listed at the top left corner is contextual to whatever screen you are currently on. From the Dashboard page, clicking + New will show you a dropdown of the asset types you can create in the system e.g. Instrument, Test Standard, Loop, and Equipment. From the dropdown you will select the asset type you are looking to create.

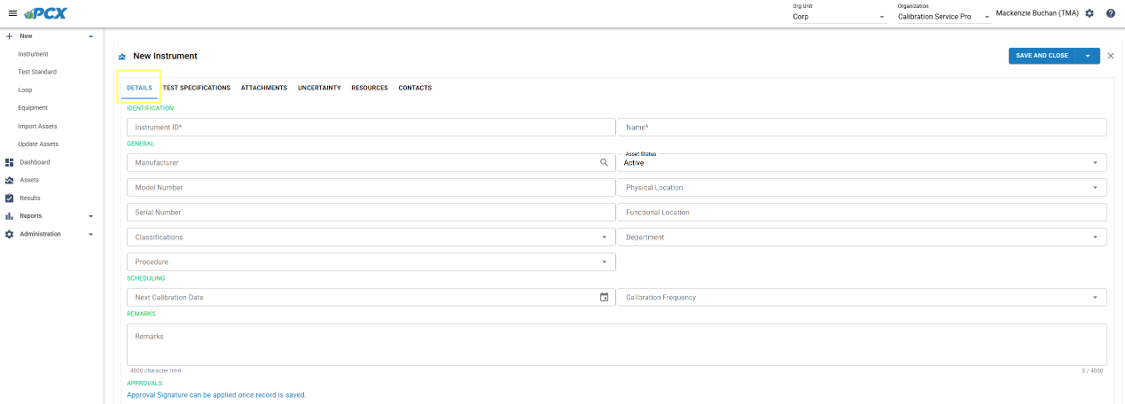

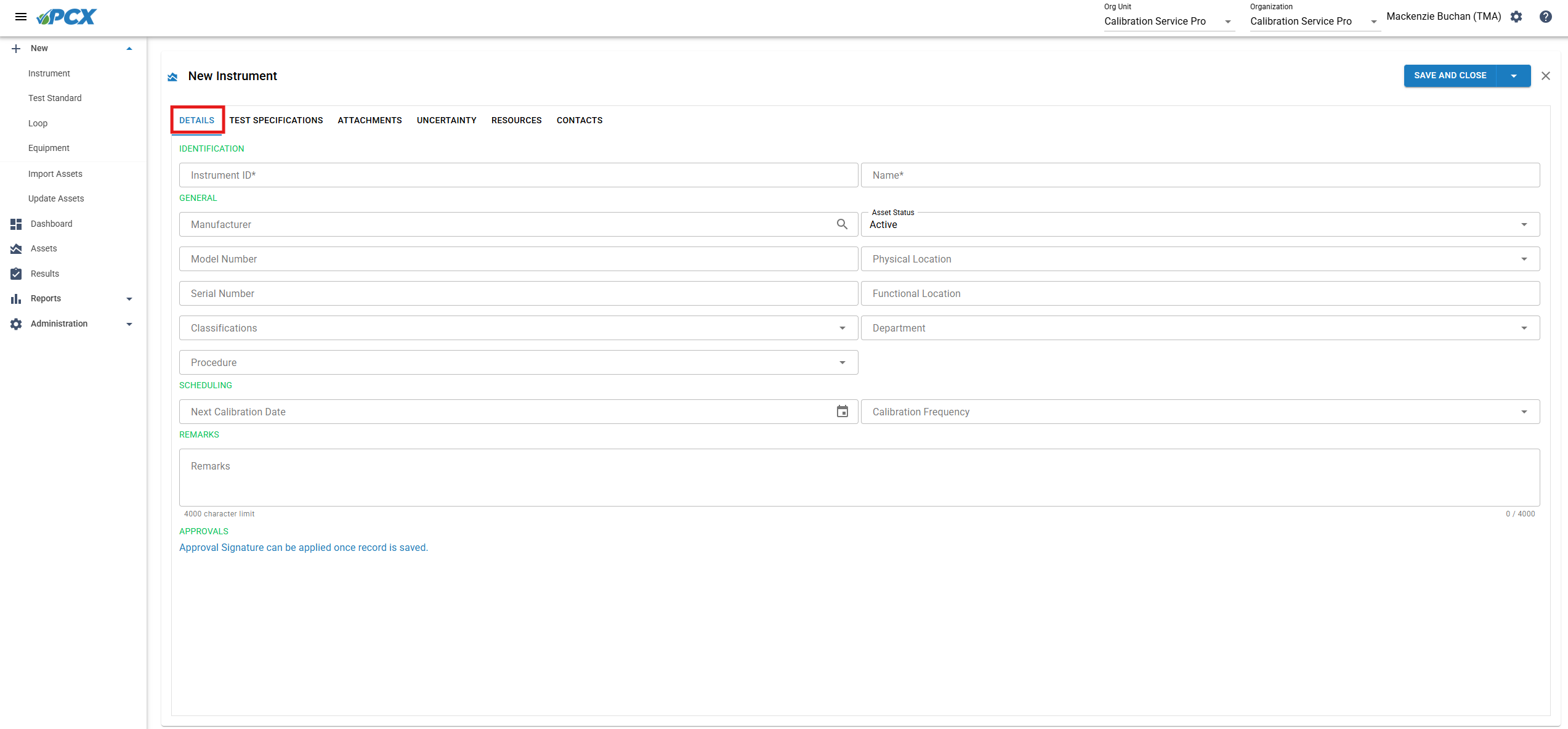

From here the asset create page will load and you will have the details tab open. Next you can populate the basic details of the asset such as general information (manufacturer, model number, serial number, etc) as well as the calibration schedule and any remarks/comments about the new asset.
Asset
| Column Name | Description | Note |
| Asset ID | Unique identifier used to distinguish the asset within ProCalX. E.g. Instrument ID, Test Standard ID, Loop ID, or Equipment ID. | Required Field. |
| Name | User-friendly name or description of the asset. | Required Field |
| Manufacturer | The company that produced the asset. | |
| Asset Status | Current lifecycle status of the asset. | |
| Model | The model number or designation of the asset. | |
| Physical Location | The primary physical location where the asset resides. | |
| Serial | The manufacturer-issued serial number for the asset. | |
| Functional Location | Logical or operational grouping of the asset (e.g. system, process, or function). | |
| Classification | Categorize the asset using predefined or custom tags. | |
| Department | The department responsible for or associated with the asset. | |
| Procedure | Identifies the primary calibration or maintenance procedure assigned to the asset. | |
| Next Calibration Date | The next scheduled calibration date for the asset. | MM/DD/YYYY |
| Frequency | The calibration frequency for the asset. | |
| Remarks | Additional notes or comments related to the asset. |
