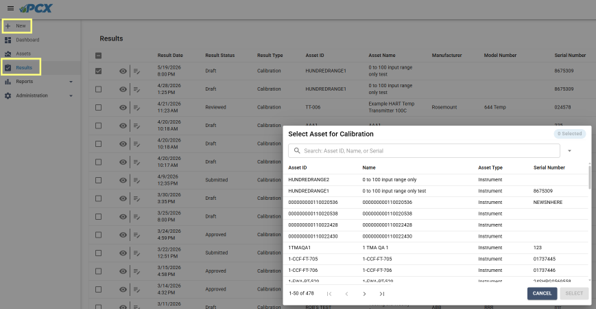

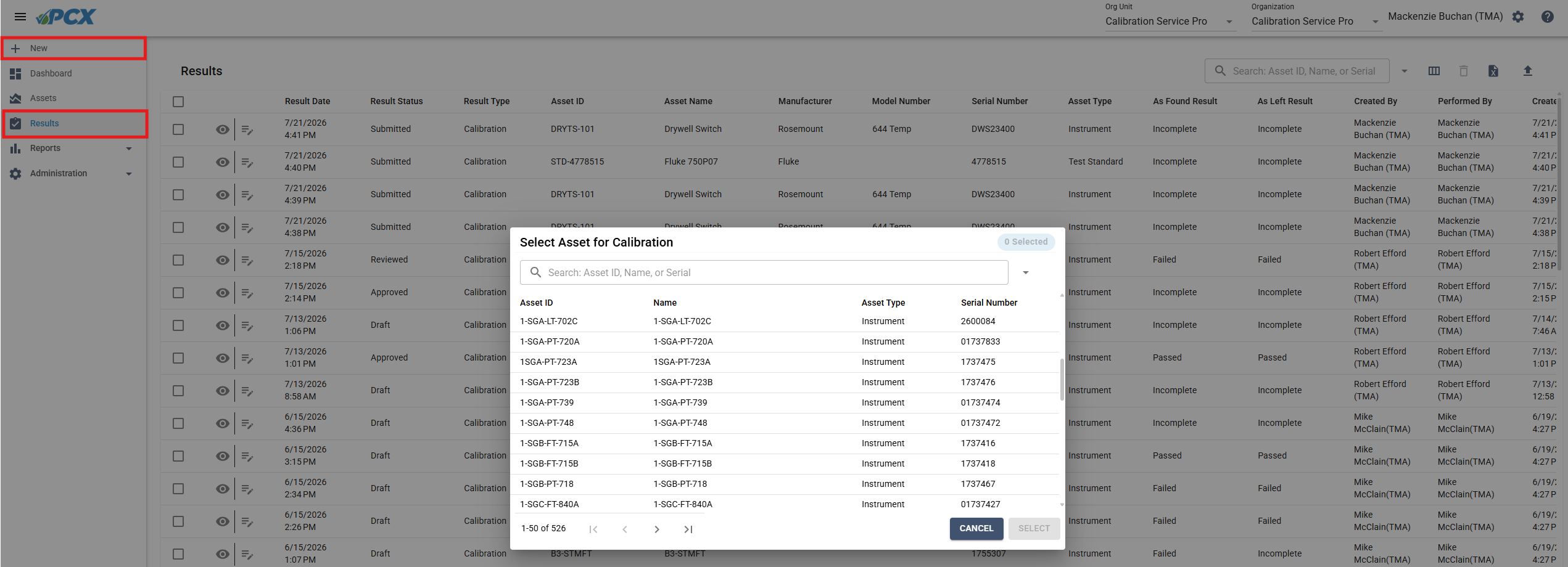

There are two main ways to create a calibration result in ProCalX. From the Results page open, you can select the “+ New” button and it will bring up a window where you can select the asset you would like to calibrate.

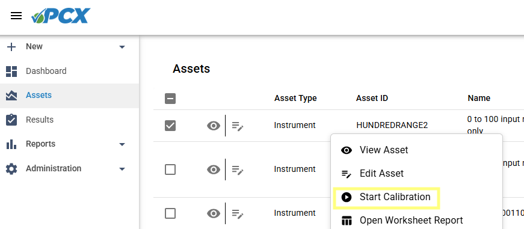

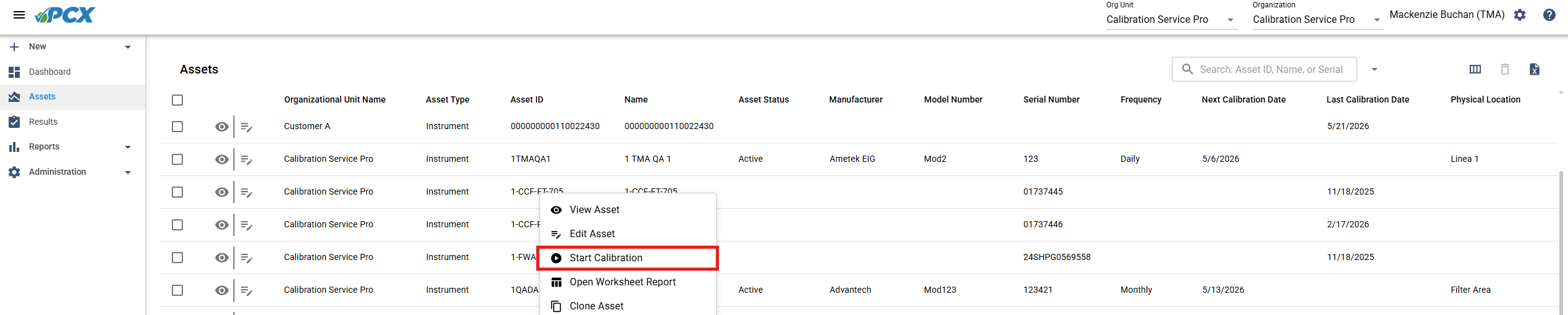

The second way to create a calibration result is from the Assets index page. From here you can select a given asset, right-click, and select “Start Calibration”.
Calibration
| Column Name | Description | Note |
| Result Date | Date of calibration event. | Required Field, MM/DD/YYY |
| Result Time (Optional) | Time of calibration event. | HH:MM |
| Temperature | Ambient temperature during calibration. | |
| Temperature Unit | Unit of temperature measurement. | |
| Humidity | Ambient humidity during calibration. | |
| Humidity Unit | Unit of humidity measurement. | |
| As Found Result | Calibration result before adjustments. | Required Field |
| Automatic As Found | Indicates if the result was system-generated. | Required Field |
| As Left Result | Calibration result after adjustments. | Required Field |
| Automatic As Left | Indicates if the result was system-generated. | Required Field |
| Actions | Actions performed during calibration. | |
| Remarks | Additional notes regarding calibration. | |
| Primary Tech Email | Technician responsible for calibration. | Must be a valid email address who is added as a user in PCX (can be enabled or disabled). |
| Primary Tech Labor Hours | Time spent performing calibration. |
